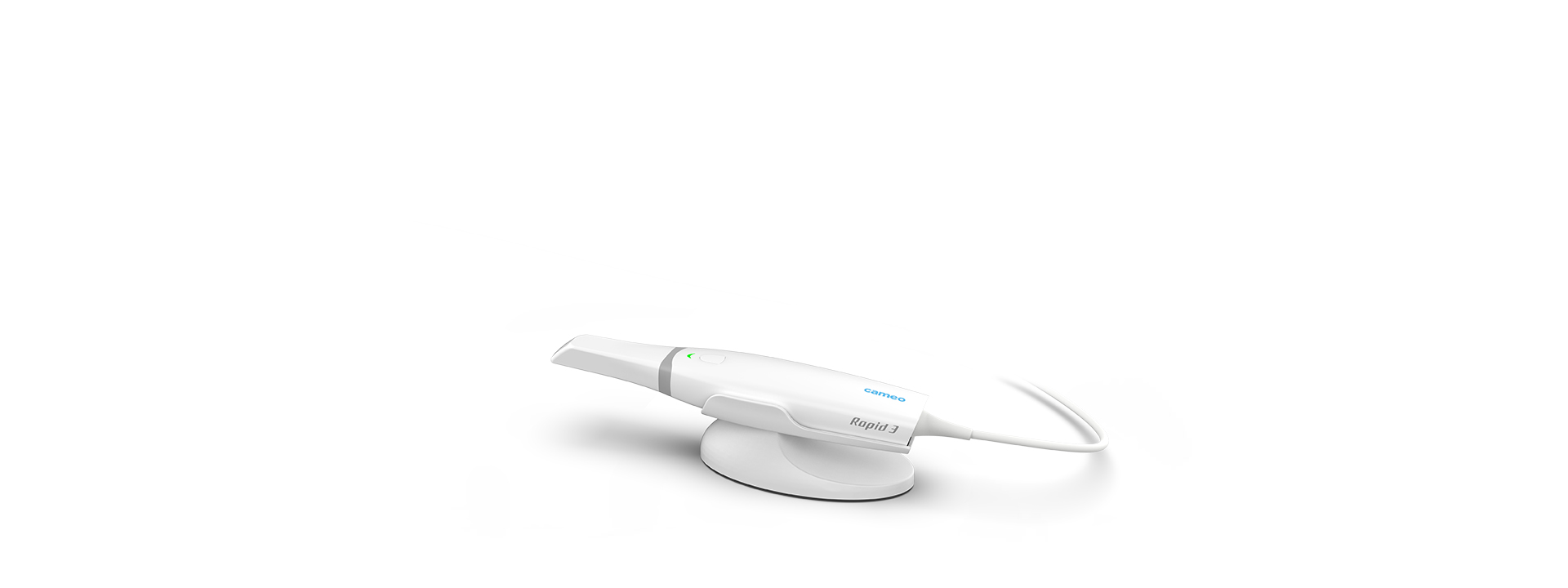

Rapid 3
Intraoral Scanner
[ Aidite Elegant 3 Digital Scanner Highlights ]
Automatic anti-fogging
One-click remotesensing control
Autoclavable (100 times)
Operates with just one connecting cable
Data collection of complex casesis smooth and accurate
The high precision and increased depth of field of Aidite Rapid 3 enables it to smoothly and accurately complete the intraoral data collection of implant cases with large area missing teeth, and cover implant cases with removable dentures and long bridge missing teeth, etc, which can shorten the time of patient visit and improve patient experience.
Data acquisition before removable denture implantation
Data acquisition before long-bridge lack implatation
User-friendly
AI scan + Clinical Toolkit, enjoy digital working mode

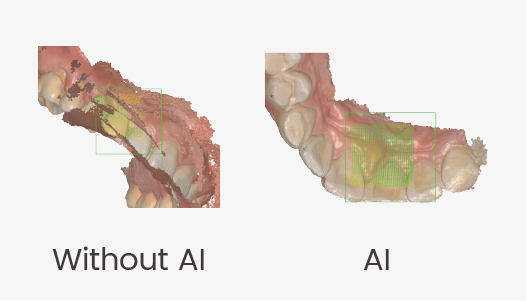

Ai scan
Automatically identifies and fillters out unnecessary soft tissue dataduring scanning resulting in a quicker and cleaner scan process.

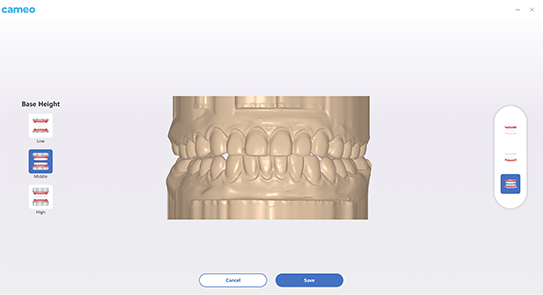

Add 3D printing base
One click to add 3D printing base, no need to operate in the design software software, simple and fast.

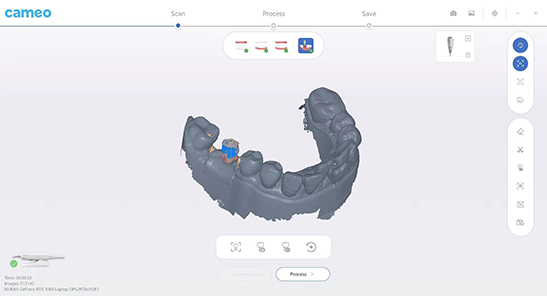

Implant scan rod matching
The data of planting scanning rod can be imported to realize one-click matching during scanning, improve the accuracy of scanning rod and reduce the rework rate.

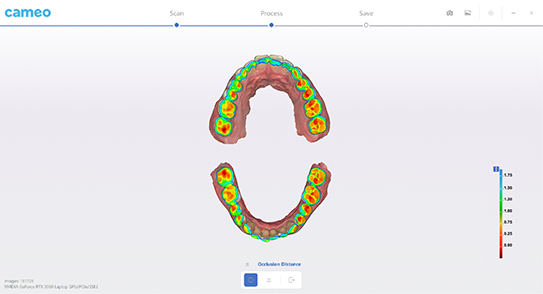

Bite check
Draw edge lines

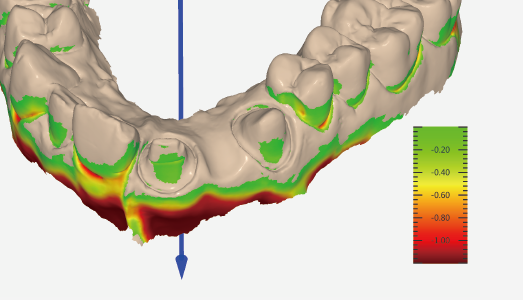

Undercut check
Practical online tools - Share data quickly
Data transfer, so easy.
Data sharing, one code
Doctors can use QR codes to
transfer data to cooperative
LABS, which is faster and more
efficient
Fast mail, communication
barrier free Doctors can communicate quickly with the lab via quick email
Multi-scenario application, flexible response
Different materials, different colors are intuitively visible metal scan
Technical Specifications
Scan Field | Standard scanner tip:14mm x15 mm x15 mm Mini scanner tip: 12 mm x 9 mm x 15 mm |
Scan Depth | 15mm |
Scan Principle | Structured light |
Dimension(L×W×H) | 240mm x49.5mm x30.5mm |
Weight | 240g |
Output data format | STL, OBJ, PLY |
Connector | USB3.0 |
Power | 12VDC/3A |
Recommended PC Configuration
| Components | Minimum System | Recommended System |
| Processor | Intel core i7-9700 or higher | Intel core i7-12700 or higher |
| Graphic card(GPU) | NVIDIA® GeForce® GTX 2060 6 GB (or better) | NVIDIA® GeForce® GTX 3060 8 GB (or better) |
| Memory | 16 GB (or more) DDR4, frequency 2666 MHz (or better) | 32 GB (or more) DDR4, frequency 2666 MHz (or better) |
| Disk | 512GB (or more) SSD | 1TB (or more) SSD |
| Display | 15.6" FHD (1920 x1080)(or more) | |
| Operating System | Windows 10 Pro/Win 11,64bit | |
| I/O Ports | At least one USB Type A 3.0 port | |
