[ Introduction ]

Aidite CSF-400 is a special furnace for cameo's rapid burning oxidation furnace. As a new generation product of cameo's rapid burning oxidation furnace,it achieves a high match with cameo's rapid burning oxidation materials. At the same time, the single-crown sintering time of only 55min and the addition of an intelligent management module greatly improve the efficiency of denture-processing. The sintering time  is short, which meets the needs of clinical use. At the same time, the two-layer heap collapse design is adopted, and a maximum of 14 single-crown dentures are sintered each time, which also meets the needs of the processing plant so that it can be applied to two different scenarios of technicians and clinical.


[ Parameter ]

ModelCSF-400
Sizeφ75×275mm
Dimensions468mm×360mm×785mm
Net weight65kg
Power supply220-240V, 50/60Hz, 16A
Rated Power3.5KW
Double-walled

Per floor Each layer of crucibles has 7 single crowns/3 triple bridges

Number of curvesPreset 4/Custom 4
Temperature RangeRoom temperature -1580℃
Accuracy of constant temperature≤±1℃
Thermo coupleType B
Heating elementsSilicon carbide rod
Heating Rate≤150℃/min
Hearth materialCorundum mullite
Crucible materialCorundum


Combined with Aizir Flash to form a complete fast sintering solution,which can achieve the fast sintering in 30 minutes

Customer-centric, dedicated to solving problems for customers.


[ ZIRCONIA RAPID SINTERING FURNACE ]

Fast sintering rate, Large number of sintering, Good sintering effect, safety


1. Fast sintering rate

*The chart data is FPM single crown sintering data

NO.Rate of temperature rising ℃/minTemperature(℃)Time(min)
1150.011500.0
230.013100.0
320.014100.0
430.0155010.0
50.000.0
60.000.0


2. Large number of sintering

Double-layer crucible, each layer of crucible holds 7 teeth, and can sintered up to 14 single crowns or 6 triple Bridges


3. Safety

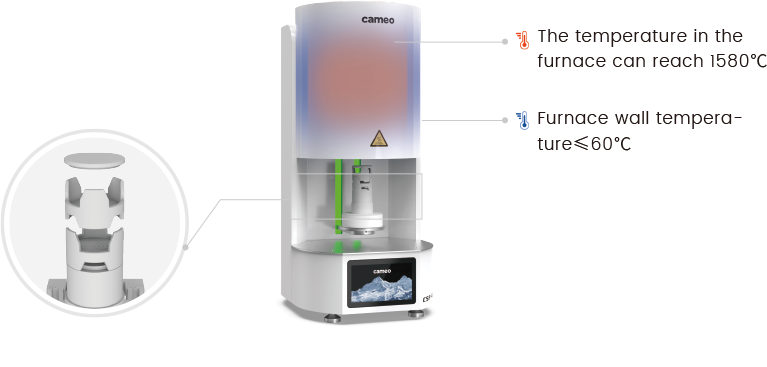

The heat insulation effect of the furnace is good, and the maximum temperature of the shell is not more than 60℃



[ EFFICIENT AND INTELLIGENT MORE THAN THAT ]

Efficient and intelligent, more than that

The pursuit of the ultimate in sintering effect, constantly updated in intelligent applications


1. Fast sintering rate

Only need 30 mins to sinter a single crown.


2. Large number of sintering

Sintered up to 14 single crowns(double crucible, 7 teeth per crucible)


3. Custom sintering curve

4 custom sintering curves, 4 preset sintering curves, can be freely adjusted to meet different needs


4. Safety

The heat insulation effect of the furnace is good, and the maximum temperature of the outer shell does not exceed 60℃


5. Various sinterable material

Suitable for cameo self-developed Aizir, 3D Pro zirconia material, self-developed fast sintering


6. High performance silicon carbide rods

Fast heating rate, can be insulated at 1580℃ for 60mins


7. Adapted chair side solution

The combination of the fast sintering zirconia and the cameo chair side machine forms the cameo chair side digital restoration solution
