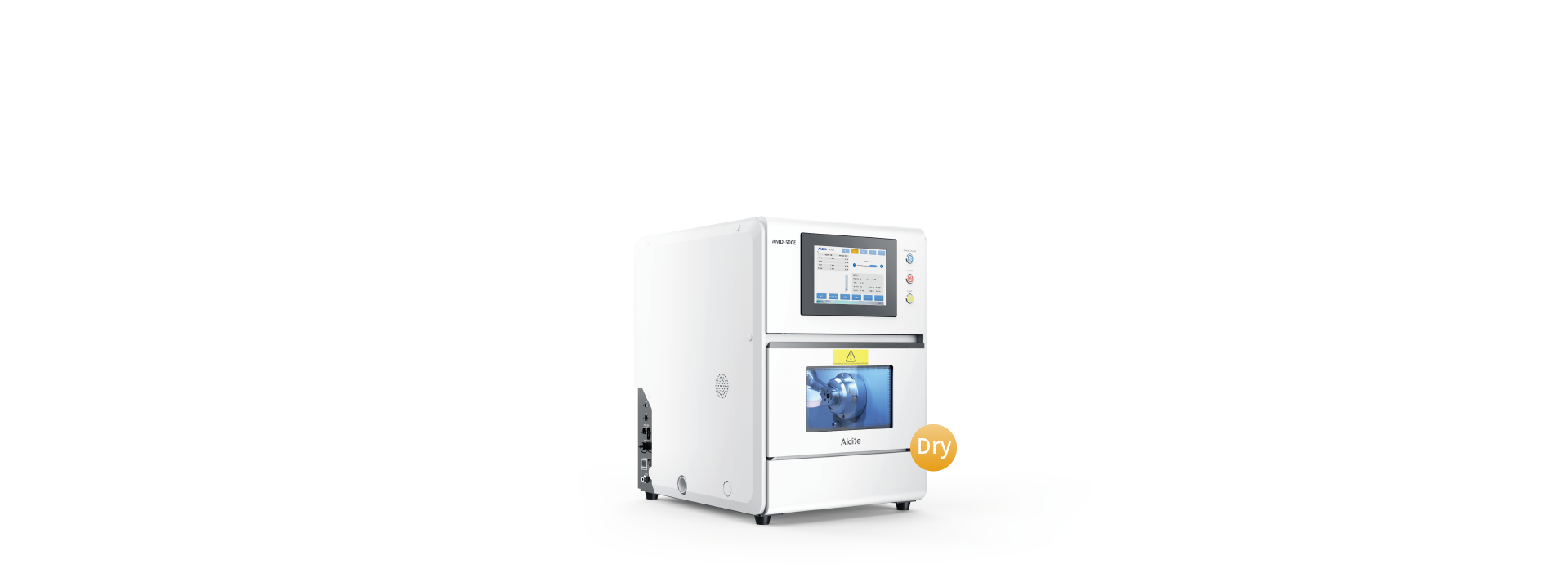

AMD-500E
Dental Milling Machine
[ Introduction ]
Aidite AMD-500E 5-axis dental milling machine is mainly used for CAD/CAM processing of dental materials such as Zirconia, Pmma, Composite Materials Etc. AMD-500E is easy to operate and reliable in performance. It has an All-in-one silica dust-proof design and enables it to do 90° vertical processing. Moreover, AMD-500E is equipped with a 1/2 open fixture and a plastic secondary fixture, which effectively improves the material layout utilization, functions like automatic calibration and smart alert bring you the ideal dental material processing solution.
>Product Brochure[ Aidite AMD-500E Highlights ]
All-in-one air cast aluminium platform
Modular Structure Design
Dust cover made by one-piece silicone
Multiple Fixture, Fast Switch
Large Anlie/90° Processing
Tool life management Function
Parameter
Platform | Aviation cast aluminum |
Dimensions and weight | 520×650×720(mm) |
Weight | 120Kg |
Processing methods | Dry milling |
Number of tools | 8 |
Dust-proof | Integrated silicone |
Fixture Type | Secondary fixture/98 disk(Optional)/ Block type(Optional) |
Processing material thickness | 10-35mm |
Processing material | Zirconia,PMMA,WAX,PEEK,HPP,Soft Metal |
CAM software | Open CAM System |
90°buccal side machining | √ |
Motor | Servo motor |
Air Pressure | ≥6Bar |
Power suppl rocessing Base time | 10-30mm |
Machining time | Full Crown ＜15min，Bridge＜3h |
[ Spinde ]
Air Cooling
Max:60000RPM
500W
4mm Chuck

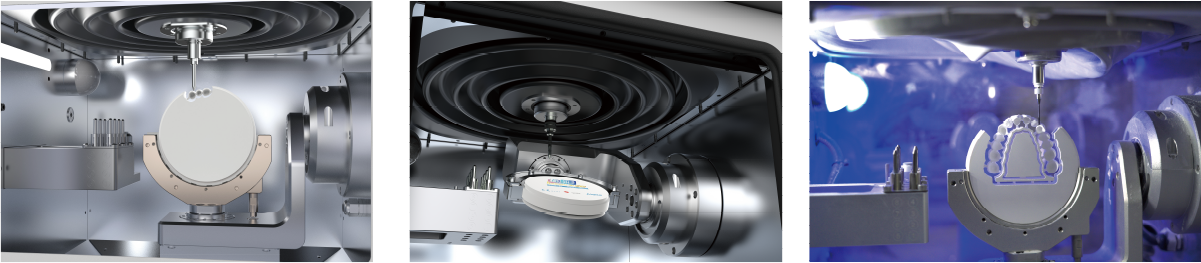

[ Machining angle ]
A Axis: +135°,
-30° B Axis:360°
[ Machining type ]
Crown
Bridge
Veneer
Inlay
Full contour screw retained bridge
Full arch crown bridge
[ Application scenario ]
