AMD-500S
Dry Milling Machine
[ Introduction ]

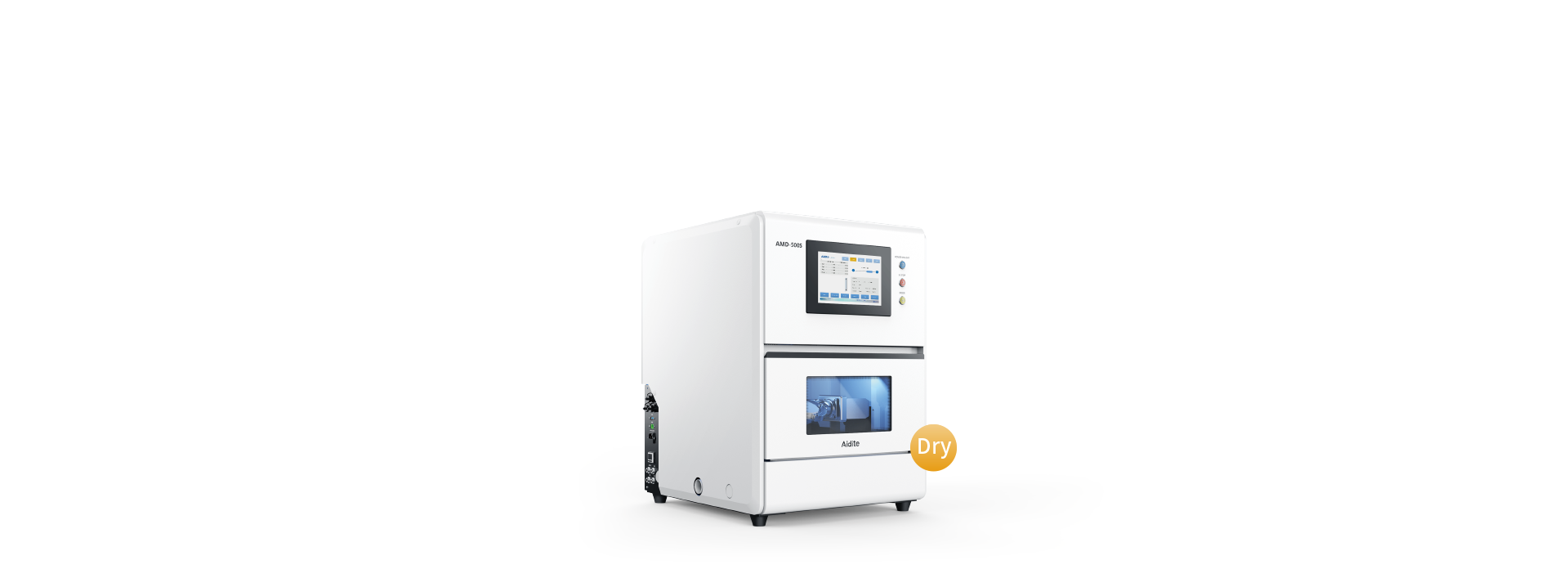

Aidite AMD-500S is a high-precision, high-efficiency five-axis dry milling machine with stable operation, powerful functions and easy operation. 90° vertical processing, intelligent maintenance reminder, safety door function, integrated silicone seal and dust-proof design, bring you the most ideal processing solution.
[ Aidite AMD-500S Highlights ]
Machine Maintenance Tips
Safety Door
one-piece silicone
Automatic calibration
Large Angle Processing/ 90° Processing
Tool life management Function
[ Parameter ]
Platform | Aviation Aluminum Casting Structure |
Dimensions and weight | 590×730×820(mm) |
Weight | 180Kg |
Number of axes | 5-axis Linkage Zirconia Milling Machine |
Processing methods | Dry milling |
Processing material | Zirconia, Pmma, Wax, And Other Dry-milling Dental Soft Materials |
Processing material thickness | 10-30mm |
Repeatability | ± 5μm |
Linear drive system | Linear Guide And Screw |
Rotary drive system | Harmonic Reducer |
Control System | Embedded Cnc System And AC Bus Servo Motor |
Automatic tool change quantity | 10 Pieces |
90° buccal processing | Support |
Safety door | Support |
Power supply | Single-phase Ac 220v 50/60hz Voltage |
Power consumption | 1.6kw 8a |
Air Pressure | ≥6Bar |
[ Spinde ]
Power Consumption: Ac 1500w
Water Cooling
Speed: 60000rpm
Chuck Size: Φ4 Mm
[ Machining angle ]
Xyz Axis: 180x110x100(mm)
Ba Axis: B: ±30° -90°;
A: ±360°
[ Machining type ]
Single Crown, Bridges, Veneers, Inlays, Abutments, Screw-retained Crowns, Screw-retained Bridges (Implantation Needs To Add A Separate Nesting Module)

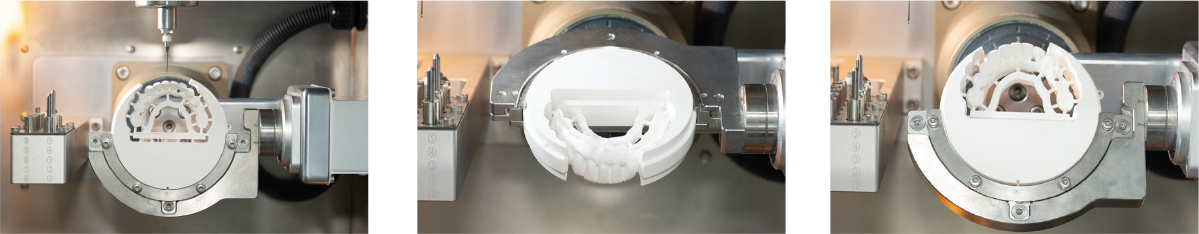

[ Detail Effect ]
