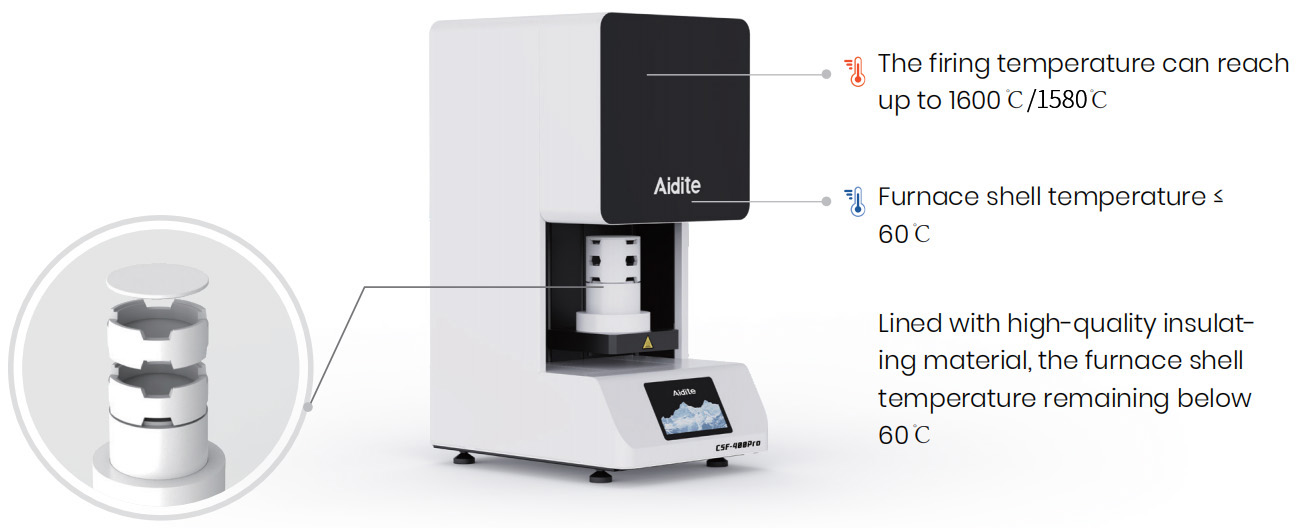

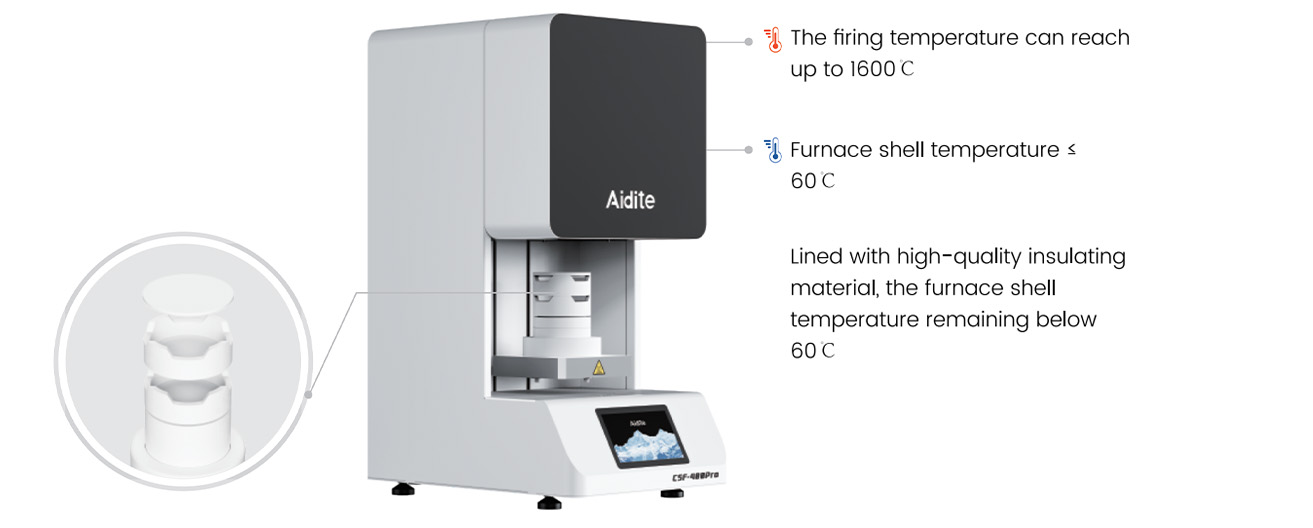

The newly launched CSF-400Pro zirconia rapid sintering furnace sets a new standard in performance and functionality. Its unique double-layer crucible design accommodates up to 60 single crowns per cycle, perfectly meeting the high-volume production demands of dental laboratories. Equipped with a 7-inch touchscreen with Aidite's advanced UI program, it integrates operation guidance, fault alarms, and maintenance tutorials, significantly reducing training time and improving efficiency. Utilizing 4 premium imported silicon molybdenum rods or 3 silicon carbon rods, it ensures an extended service time, high sintering temperature, and minimized maintenance costs, offering an unparalleled experience for modern dental applications.
High speed, high capacity, excellent sintering performance,
1. Aizir Flash Long Span Bridges rapid sintering curve
| NO. | ℃/min | Temperature(°C) | Time(min) |
| 1 | 60/30℃ | 1050 | 0 |
| 2 | 3 | 1490 | 90 |
| 3 | 8 | 900 | 10 |
| 4 | 50 | 300 | 0 |
2. High-capacity sintering
Sintering up to 60 units stacked in two levels
3. Safety
| Model | CSF-400Pro |
| Chamber | Φ110 X H110mm |
| Dimension | 516X385X816mm |
| Net weight | 77.5kg |
| Power supply | 220-240V, 50/60Hz, 16A |
| Rated power | 3.5KW |
| Sintering capacity | 60 single crowns |
| Number of curves | Preset 19/ User-defined 5 |
| Temperature range | Room temperature -1600 ℃/1580℃ |
| Temperature accuracy | ≤±1℃ |
| Thermocouple | Type B |
| Heating element | Silicon molybdenum rod or silicon carbon rod |
| Heating rate | ≤60℃/min ≤30℃/min |
| Chamber material | Corundum mullite |
| Crucible material | Corundum |
Specifically designed for Aizir Flash Long Span Bridges' rapid sintering, achieving a sintering time of only 4.8 hours, CSF-400Pro significantly enhances the efficiency of dental prosthetics processing. As the new generation product of zirconia rapid sintering furnace, CSF-400Pro delivers the quality and reliability that you have come to expect from Aidite.
