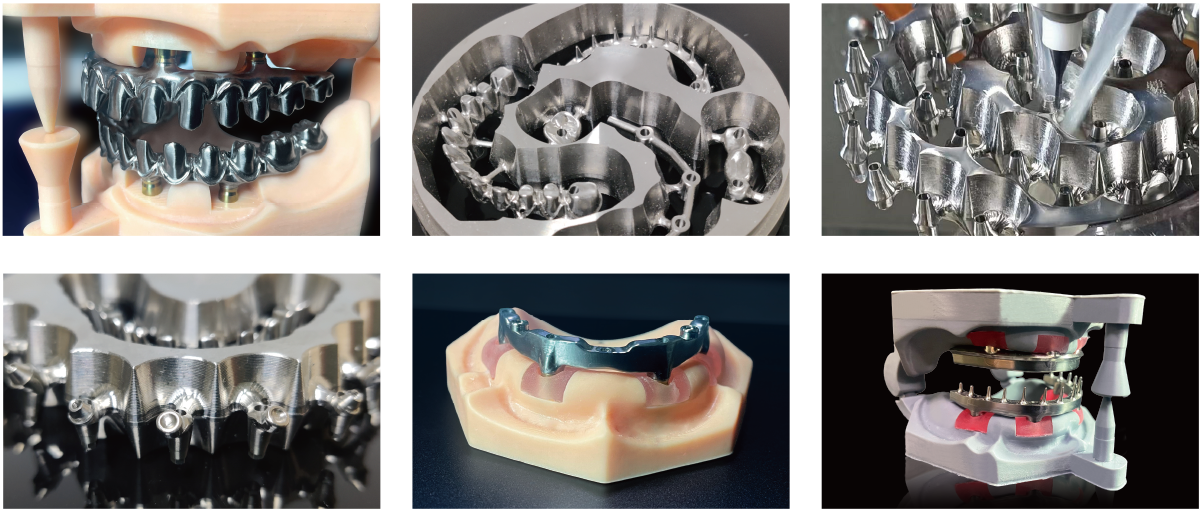

The AMM-580 is a highly versatile and robust milling machine designed to meet today's most demanding implant requirements. It can process implant bars, screw-retained bridges, custom abutments, and more with a stable structure and high machining precision.
High precision spindle
Maximum speed 60,00rpm; Shank diameter 6mm
Tool magazine
25 tool magazines design; Various implants processing types
Tool life management
Real-time recording of tool usage time; Intelligent prompt tool replacement
Aviation cast aluminum platform
Stable structure ; Smooth operation
Large angle machining
Rotation angle A-axis: 360° B-axis: -110°, +30° ; Fine processing of bridge undercut
High precision servo system
Higher machining accuracy; Stable precision control
| Number of axis | Five axis |
| Processing type | Crown/Bridge, Implant bar, Screw-Retained Bridge, Abutment, locator |
| Milling mode | Wet/Dry |
| Millable material | Titanium disc, Cobalt Chrome, Premill, Glass ceramic, PEEK, PMMA |
| Material thickness | 10-25mm |
| Fixture | 98mm/Block |
| Repeat positioning accuracy | ±5um |
| Linear drive system | High precision linear guide slide block |
| Rotary drive system | High precision reducer |
| External dimensions | 750*885*1663mm |
| Weight | 500KG |
| Tool changer | 25 |
| Stroke | X,Y,Z axis：320*120*130mm A-axis：360° B-axis：-110°, +30° |
| Spindle | Power: 2.5kw Cooling method: water cooling Speed :60000rpm Chuck size :6mm |
| Input | Power supply :AC220V 50Hz 60Hz Power :3.8kw Air pressure :0.6-0.8MPa |
