Infinity 5 is a high-precision wireless intraoral digital impression instrument specially designed for clinics.
Rapid scanning

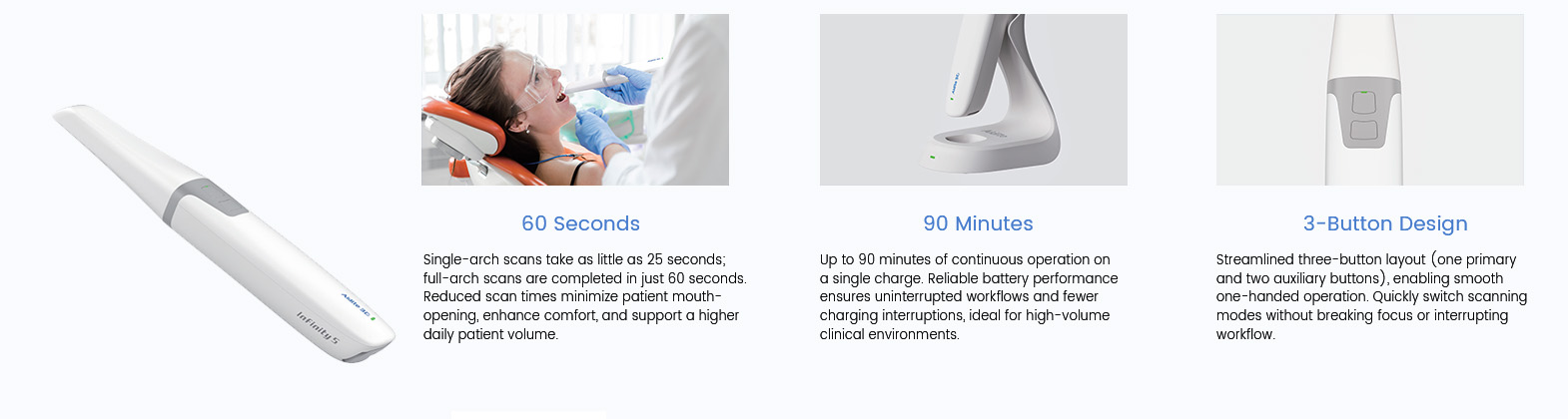

Equipped with Al scanning, high-precision optical instruments, 3D reconstruction algorithms, intelligent matching, and other functions; the scanning of the half dental arch and full dental arch can be completed in 25 and 60seconds, respectively.
simplify processes and improve efficiency
Improve scanning efficiency: increase operational flexibility and reduce hand fatigue.
Adapt to different scanning angles and meet the personal demands of different doctors.
HD photo
Reduce the burden on hands, minimize operational fatigue, and enhance the patient's experience during medical treatment.

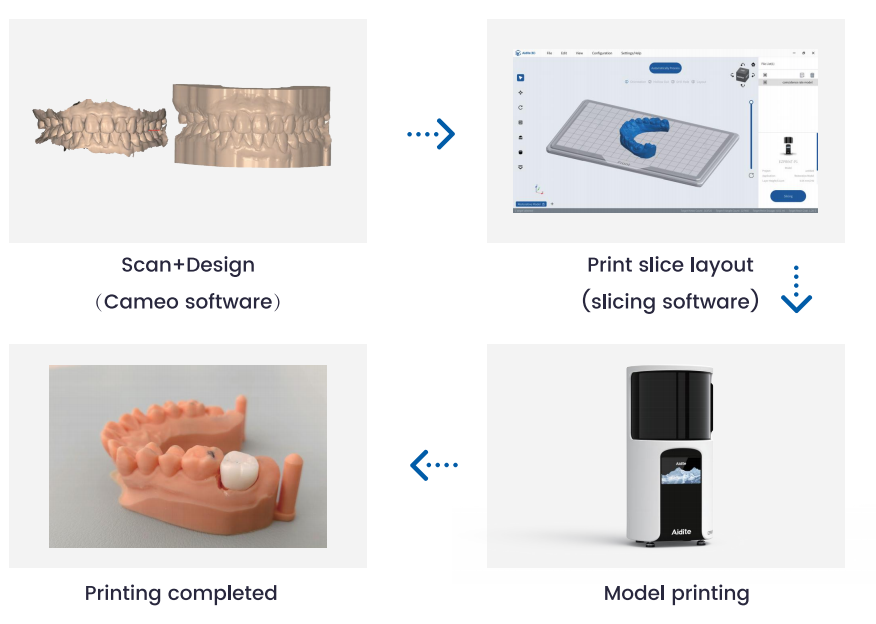

One-click printing
Data collection of complex cases is smooth and accurate
The high precision and increased depth of field of Aidite Infinity 5 enables it to smoothly and accurately complete the intraoral data collection of implant cases with large area missing teeth, and cover implant cases with removable dentures and long bridge missing teeth, etc., which can shorten the time of patient visit and improve patient experience.
User-friendly
Al scan + Clinical Toolkit, enjoy digital working mode.
Multi-scenario application flexible response
Different materials, different colors are intuitively visible metal scan.
| Category | Technical Parameters | |
| Dimension | (L×W×H) | 269×39×34mm |
| weight | 249g（include battery） | |
| Tip | depthoffield | 25mm |
| Autoclavable | Autoclavable 100 times | |
| 134℃ 6mins | ||
| Accuracy | Crown | ≤10μm |
| Full-Arch | ≤20μm | |
| Connectivity | Method | Wireless wifi |
| Battery | Scantime | 90minutes |
| Date | Output format | STL PLY OBJ |
| transmission | Aidite cloud | |
| Recommended System Requirements | Processor | Intel Core i7-9700 or above |
| Memory | 16GB or above | |
| HardDrive | 256GB SSD or above | |
| Graphics Card | NVIDIA GeForce RTX 3060 8GB or above | |
| System | Windows 1064 bit or above | |
| Display | 1920×1080 or above | |
| Calibration | Calibration-Free | |
| Advanced Mode | Remote control | |
| Heating temperature | ≤48℃ | |
| Language | 13 languages English, Simplified Chinese, German, French, Polish, Spanish, Italian, Russian, Czech, Greek, Portuguese, Turkish, and Hungarian | |
| Software Function | AIScan,TruecolorScan, Metalscan, impressionscan, Implant, scanbody match, Margin line, Model builder, Health report, Case Cloud Share, Orthodontic Simulation | |
