The new Cameo CMD-500 is the perfect choice for dry milling equipment in the chairside system. Because ofthe new design and development concept, CMD-500 can excellently complete the processing of zirconia, PMMA.
| Basic construction | Aluminium |
| Number of axes/operation type | 5 axes simultaneous processing |
| Rotation angle | A-axis +135°-30°&B-axis 360° |
| Spindle/power | High frequency pure electric spindle/0.5 KW |
| Maximum spindle speed | 60000 rpm |
| Tools | 4mm shaft diameter |
| Tool changer | 8-fold |
| Tool length control | <0.002 mm precision |
| Monitor | Integrated 10.1 touch screen |
| lllumination | 3 LED status colors |
| CAM software | Hyperdent&Millbox |
| Weight | 120kg |
| Width x depth x height | 520*685*697 |
| Line voltage&frequency | 1PH AC 100-240V |

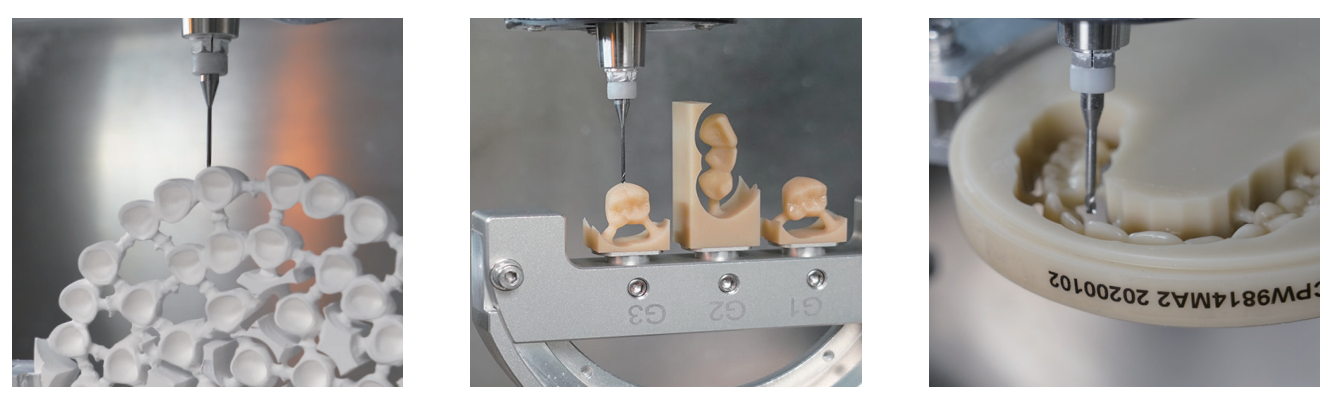

The high-quality one-piece cast aluminum construction ensures maximum stability with a minimum equipment size. Using the 5-axis simultaneous technology, also the C-type holder and block holder can be integrated in addition to the single universal holder. This ensures it easier for dentists to use materials of different sizes. Meantime, a series of intelligent designs, such as three-color light running status prompts, security lock, allowing dentists to operate CMD-500 in a more economical, safer and faster way to complete the chairside milling.
